How to Rescue a Broken Oracle Cloud VM Instance

14 Sept 2023 | oracle, cloud, vm, tutorial

So, you’ve messed with the wrong settings and you cannot connect to your Oracle Cloud VM. Here are two methods you could try before needing to nuke your instance and set up everything from scratch again.

Method 1: Oracle Cloud Shell

If you somehow managed to break your SSH connection, you can try the Oracle Cloud Shell. It is basically a terminal shell that you can access directly on your browser via the Oracle Cloud console.

In your Oracle Cloud console, go to Compute > Instances > [instance name] and select Console connection on the Resources sidebar on the left. Then, click on the Launch Cloud Shell connection button. A shell console will launch at the bottom of your screen. Once the cloud shell is successfully initialized (which may take a while), you’ll be prompted to login with your user credentials.

Left: console side menu, with console connection selected; Right: Console connection details, with one connection active; Bottom: Cloud Shell window visible with "bootes login:" shown as the final prompt in the window
Oracle Cloud shell

Method 2: Attaching the boot volume to another VM instance

If your VM fails to boot because of a setting change, this method might be for you. In short, we will temporarily mount the broken VM’s boot volume to another working VM and revert the changes made that cause the VM to break. For this method to work, you’ll need to have another VM instance that is active and running.

Detaching the broken VM’s boot volume

In your Oracle Cloud console, go to Compute > Instances > [instance name] and click Stop to power down the VM. Then, select Boot volume on the Resources sidebar on the left. Select the 3 dots on the right of your boot volume and select Detach boot volume.

Left: console side menu, with Boot volume selected; Right: Boot volume details, with one boot volume listed with context menu visible and "Detach boot volume" selected
Oracle Cloud boot volume settings

Once the boot volume state shows Detached, you may proceed to the next step

Attaching the broken VM’s boot volume to another instance

Navigate to the other instance, and select Attached block volumes on the Resources sidebar on the left. Then, select Attach block volume.

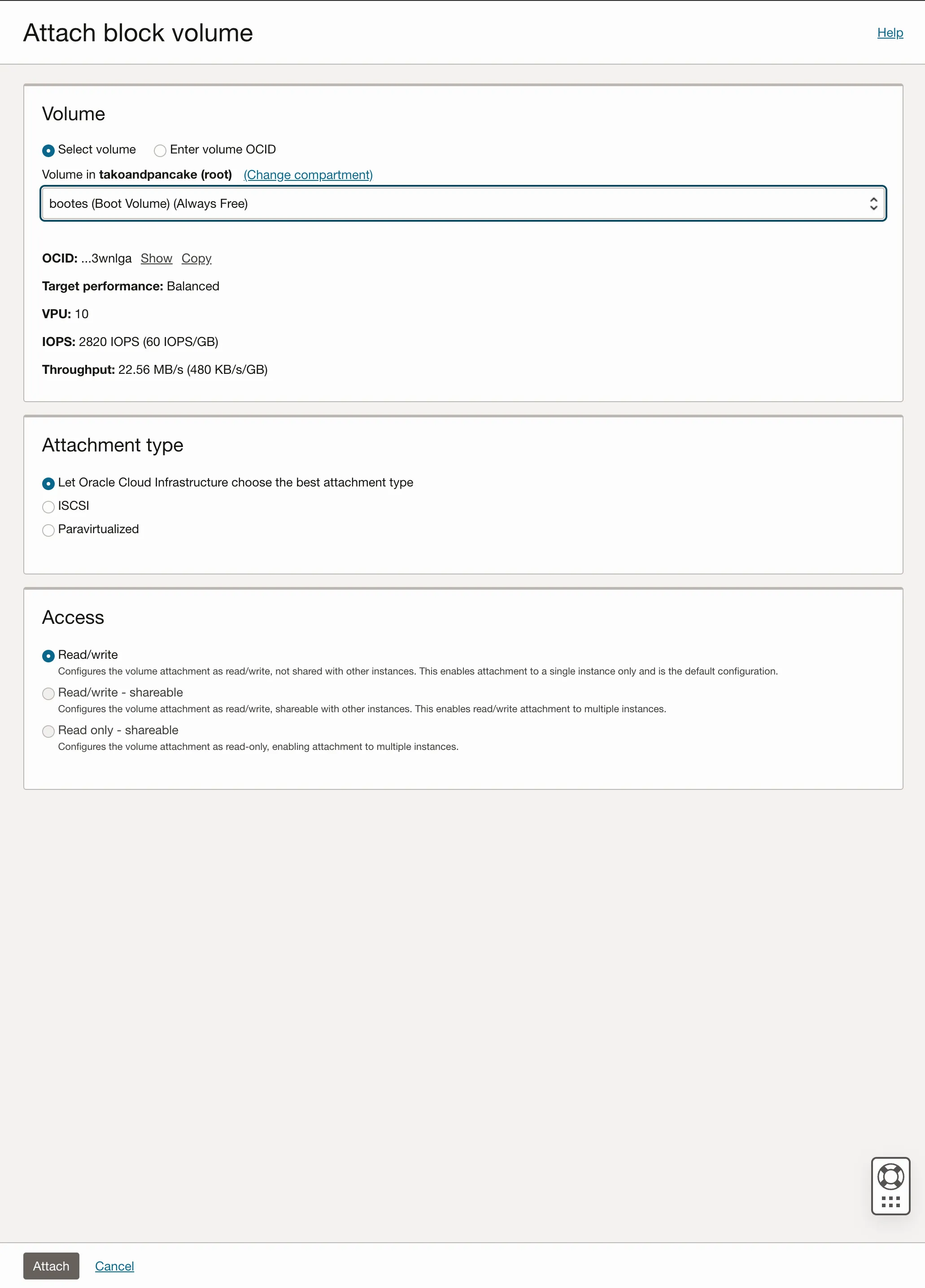

Attach block volume modal with broken VM's boot volume selected, Attachment type set to "Let Oracle Cloud Infrastructure choose the best attachment type" and Access set to "Read/write"
Attach a new block volume

Here, you should be able to select the boot volume that we detached previously. Leave the rest of the settings as default and make sure you allow read/write access. Then, select Attach. You should see a new entry added to the attached block volumes.

Left: console side menu, with Attached block volumes selected; Right: Attached block volume details, with one block volume listed
Oracle Cloud attached block volume settings

Configure iSCSI

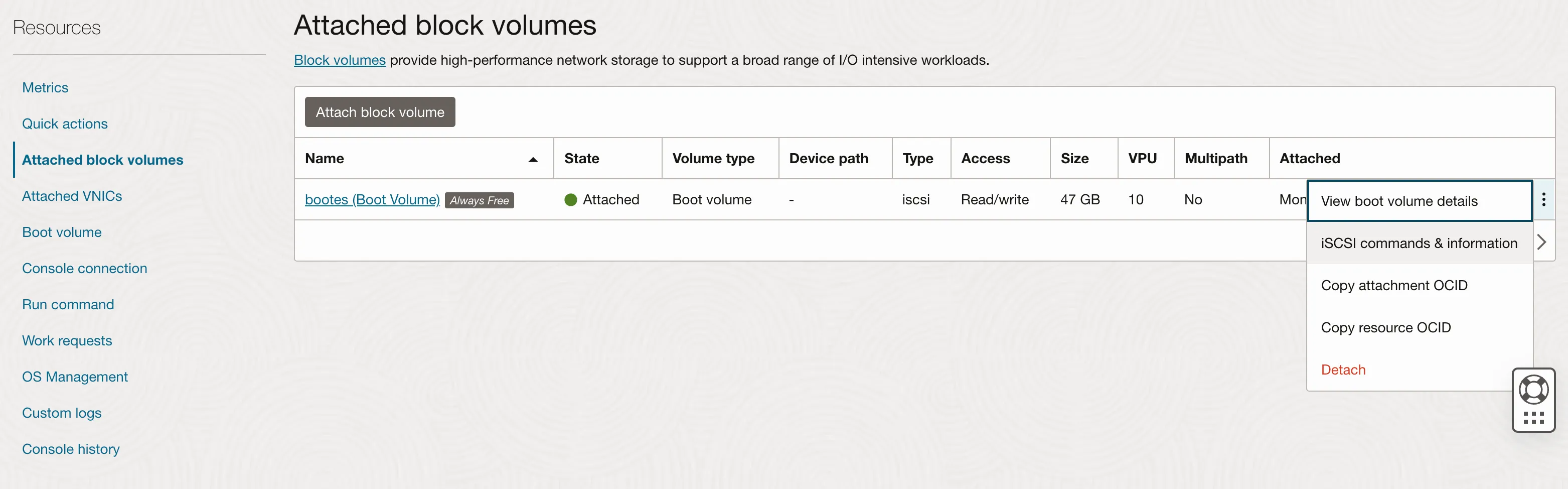

In order for the rescue VM to detched the newly attached volume, we need to run some iSCSI commands on the rescue VM. First, we need to get the commands to run. Click the 3 dots on the right of the attached block volume and select iSCSI commands & information. Copy the commands needed to attach and detach the volume and save it for later.

Next, get into a shell prompt in the rescue VM and run the attach commands. Assuming you’re running Linux, you should see a new drive entry when you run lsblk. You’ll then mount the drive as how you would do in linux:

$ sudo mkdir /mnt/tmp
$ sudo mount /dev/[drivename] /mnt/tmp

Make the neccessary fixes and you can reattach the boot volume to the broken VM. In the case where the VM is beyond repair, you can use the same method to extract data that you need.

Detach block volume

First, ensure the drive is unmounted:

$ sudo umount /mnt/tmp

Then run the detach commands that you’ve saved from iSCSI commands & information. Once the commands are sucessfully executed, you can now safely remove the boot volume by detaching it from the rescue VM.

When the boot volume disappears from the attached block volumes list, go back to the broken VM instance and reattach the boot drive. With your fingers crossed, start the VM instance and hopefully your VM is restored to a working state.
